£»POSITION¡GHome /Fan Module



  Application:






1. Server 3. Telecom
2. Data Storage 4. Others


  DC Blower :

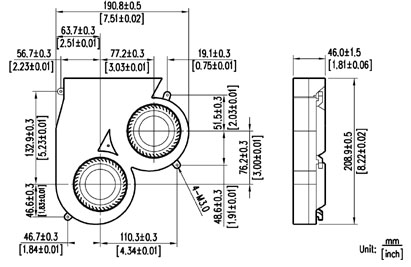

  Dimensions Drawing :


  P-Q Curve (At Rated Voltage) :



Bearing Type Rated
Voltage (V)		 Operating
Voltage (V)		 Rated
Current
(mA)		 Input
Power (W)		 Rated
Speed
(RPM)		 Air Flow
(CFM)		 Pressure
(mmH2O)		 Sound
Pressure
(dBA)
2Ball 12 8.5~13.6 1000 12.00 5000 91.0 38.5 66.5





Fan & Blower :










  C DYNAMICS offers fan/blower Assembly for cooling electronics in standard 19 inch (482.6) EIA cabinets,
  enclosures and racks. The fan/blower Assembly requires only 5 1/4” (133.3) of standard panel height
  when mounted.



Feature :



  1. High performance air flow.
  2. Low noise level.
  3. Removable, cleanable air filter.
  4. Design flexibility offers easy customizing.
  5. Standard 5 1/4 inch (133.3) panel height X 19 inch (482.6) EIA rack mounting.
  6. Decorative front panel grille with quick release quarter-turn fasteners.
